Your standard wall outlet was never meant to fuel a modern car, and waiting over 24 hours for a full charge is a burden you don't have to carry. With over 160,000 electric vehicles now registered in Illinois, many of your neighbors are realizing that a simple "trickle charge" just doesn't cut it for a busy lifestyle. If you're tired of waking up to a half-empty battery, a NEMA 14-50 outlet installation for EV Oak Brook is the most versatile way to upgrade to Level 2 speeds while keeping your options open for any vehicle brand.
We understand the anxiety that comes with high-voltage upgrades, especially when you're trying to distinguish between flimsy residential parts and the industrial-strength components your home deserves. You need a setup that's fast, flexible, and strictly compliant with the 2020 National Electrical Code adopted by the Village of Oak Brook. Our team has spent decades serving this community as a stable pillar of safety and expertise, ensuring your family's security is never compromised for the sake of a quick fix.
In this guide, we'll show you how to secure ComEd rebates of up to $1,000 and navigate local permit requirements to get your garage ready for 2026. You'll discover how the right outlet choice prevents panel overloads and provides the long-term reliability that only a professional, code-compliant installation can offer.
Key Takeaways
- Learn why the NEMA 14-50 is considered the industry standard for home charging, offering unmatched versatility for Tesla, Ford, and Rivian owners.
- Understand the 80% rule for continuous power and how to calculate the miles of range added to your battery during a standard overnight charge.
- Discover the essential safety requirements for a NEMA 14-50 outlet installation for EV Oak Brook, including the mandatory use of GFCI breakers for 2026 compliance.
- Evaluate your home's electrical panel capacity to see if your current 100-amp or 200-amp service can safely support the added demand of a high-voltage circuit.
- Gain peace of mind by following a professional installation process that prioritizes load calculations and adheres to the specific electrical codes of the Village of Oak Brook.
What is a NEMA 14-50 Outlet and Why is it the EV Standard?
The NEMA 14-50 is a heavy-duty, 240-volt electrical receptacle that has rapidly become the universal language of home EV charging. Originally designed for high-draw appliances like electric ranges and recreational vehicles, it provides the 50-amp capacity required to charge a modern electric vehicle quickly and safely. When you opt for a NEMA 14-50 outlet installation for EV Oak Brook, you are installing a "Swiss Army Knife" for your garage. It handles everything from your daily driver to high-powered shop tools or even a backup generator during a storm. Our team ensures every NEMA 14-50 outlet installation for EV Oak Brook is handled with the precision that comes from decades of local experience.
Leading EV manufacturers like Tesla, Ford, and Rivian prioritize this outlet because it bridges the gap between portability and power. Most new EVs come with a mobile connector kit that includes a 14-50 adapter right out of the box. This allows you to avoid the extra expense of buying a separate wall-mounted charging station. The difference in performance is night and day. While a standard 120-volt Level 1 outlet might only add 3 miles of range per hour, a NEMA 14-50 Level 2 setup delivers 25 to 35 miles of range per hour. You can arrive home with a low battery and wake up with a full charge long before your morning coffee is brewed.

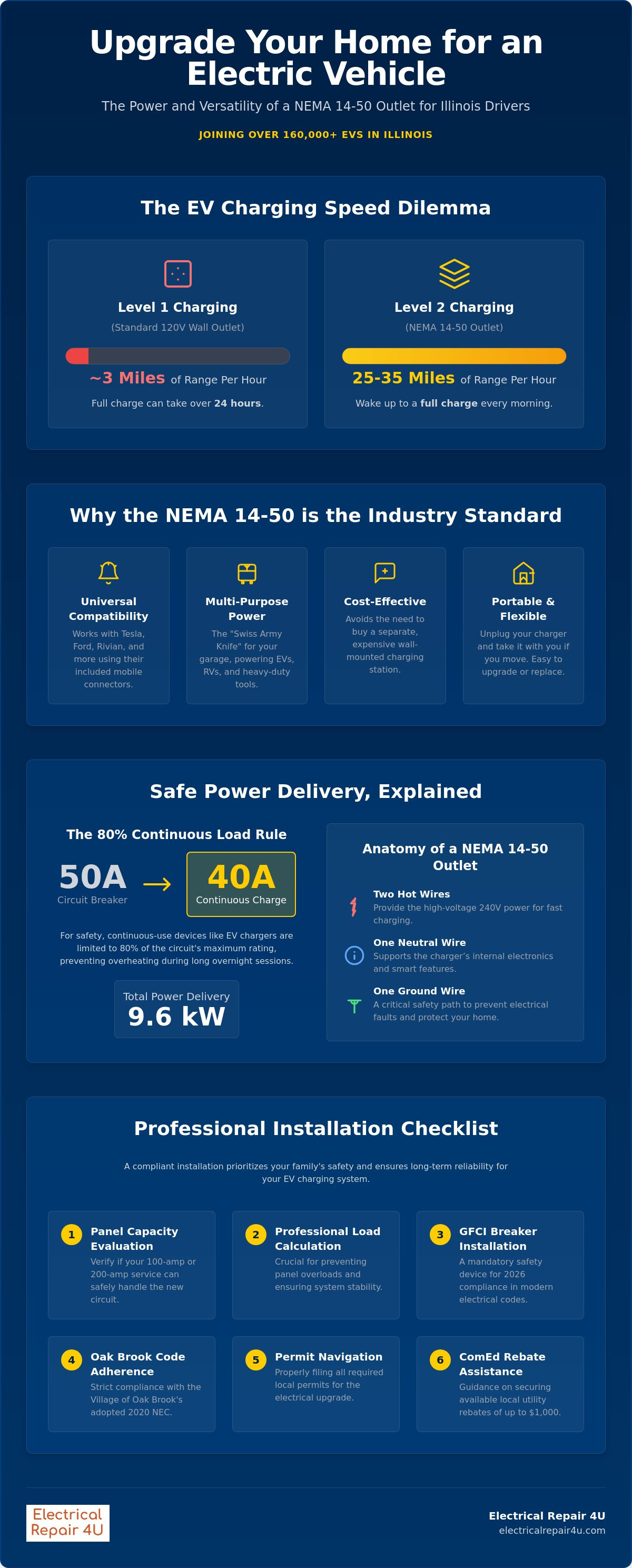

The Anatomy of a 240V EV Outlet
The four-prong design of the NEMA 14-50 standard is engineered for modern safety and high-performance throughput. It consists of four specific connections:
- Two Hot Wires: These provide the high-voltage 240V power required for fast charging.
- One Neutral Wire: This supports the charger’s internal electronics and smart features.
- One Ground Wire: This acts as a critical safety path to prevent electrical faults.
This neutral wire is particularly important for the sophisticated electronics found in modern smart chargers. It allows the charger's internal computer to stay powered up and connected to your home Wi-Fi without interfering with the high-voltage flow to the car battery. The NEMA 14-50 is the gold standard for residential Level 2 charging in 2026.
NEMA 14-50 vs. Hardwired Wall Connectors
Choosing a plug-in outlet over a hardwired unit offers significant advantages in terms of long-term flexibility. Portability is a major factor. If you move to a new home, you can simply unplug your charging hardware and take it with you. There is also the ease of maintenance to consider. If your charging cable ever malfunctions or requires an upgrade, you can swap it out in seconds without needing to schedule a follow-up electrical appointment. For many Oak Brook homeowners, this setup provides the most cost-effective path to Level 2 charging because it utilizes the mobile equipment they already own.
Charging Performance: What Oak Brook Drivers Can Expect
When you invest in a NEMA 14-50 outlet installation for EV Oak Brook, you aren't just adding a plug; you're gaining the freedom of a full tank every single morning. It's vital to understand that while your breaker says 50 amps, the real-world output is slightly different. Electrical safety standards require a 20% buffer for any device that runs continuously for hours. This means your car will pull a steady 40 amps of power. This 9.6 kW delivery is the "sweet spot" for residential charging. It's powerful enough to fill most batteries overnight but gentle enough to avoid excessive heat and wear on your home's electrical system. This balance is a core part of the professional installation process that keeps your family safe while you sleep.
Illinois winters add another layer to the performance equation. When temperatures drop in Oak Brook, your EV uses energy to keep its battery pack warm. You might see a slight dip in charging efficiency during a January freeze because some of that 40-amp current is diverted to thermal management. Even with this seasonal shift, the NEMA 14-50 remains vastly superior to a standard wall plug. While a standard outlet might struggle to add 30 miles of range in 10 hours during the winter, a Level 2 setup keeps you moving regardless of the wind chill.
2026 EV Charging Speed Comparison
| Vehicle Model | Miles Per Hour of Charge | Full Charge Time (10-80%) |
|---|---|---|
| Tesla Model Y (Long Range) | 31 Miles | ~5.5 Hours |
| Ford F-150 Lightning | 20 Miles | ~9.5 Hours |
| Hyundai Ioniq 6 | 36 Miles | ~5.5 Hours |
These speeds ensure that even the largest batteries, like those in a Ford Lightning, are ready for the workday after a standard eight-hour rest. For smaller batteries or plug-in hybrids, the charge time is often less than two hours.
Future-Proofing Your Garage for Multiple EVs
We're seeing more Oak Brook families transition to dual-EV households. Planning your NEMA 14-50 outlet installation for EV Oak Brook involves thinking about tomorrow's needs as well as today's. A single 50-amp circuit is usually the maximum most residential panels can comfortably support without a massive infrastructure overhaul. If you have two cars, you don't necessarily need two separate installations. Many modern chargers allow for load-sharing, or you can use a smart splitter that directs power to one car at a time. This keeps your home within safe electrical limits while ensuring both vehicles stay topped off. If you're curious about how your current system will handle a second vehicle, our team can help you evaluate your capacity before you bring that second EV home.
The Professional Installation Process: Safety and Standards
A safe NEMA 14-50 outlet installation for EV Oak Brook begins long before we strip a single wire. Our first priority is a comprehensive load calculation. We examine your home's total electrical demand to confirm your panel can handle a sustained 50-amp draw without tripping the main breaker. This step is non-negotiable. Without it, you risk overheating your entire service entry. Once we've verified capacity, we move to the hardware. We use heavy-duty 6 AWG copper wiring because it dissipates heat far more effectively than thinner alternatives. This thick gauge is essential for maintaining the integrity of the circuit over hours of continuous use, which is a key recommendation in this U.S. Department of Energy guide to home charging.
The physical installation involves mounting an industrial-grade receptacle inside a metal or high-impact plastic box. We don't just "hand-tighten" the connections; we perform a precise torque test. This ensures every terminal is secured to the manufacturer's exact specifications. Loose connections are the leading cause of electrical arcing and fires in garage setups. By using professional-grade tools and verification steps, we provide the emotional reassurance that your home is protected against technical failures. Our collaborative approach means we walk you through the final safety verification so you feel confident in your new charging infrastructure.
Industrial-Grade vs. Residential-Grade Outlets
Many homeowners are tempted to buy a standard $10 outlet from a local hardware store, but these parts are designed for intermittent use like a kitchen range. EV charging is a "continuous load," unlike a dryer or stove. A standard residential-grade outlet will often melt under the intense, ten-hour thermal stress of a Level 2 charge. We only install industrial-grade receptacles with high-torque terminals. These heavy-duty components are built with more copper and stronger clamping force to prevent the arcing that leads to garage fires. Investing in quality parts now saves you from a dangerous and expensive failure later.
GFCI Requirements and the 2026 NEC Code
Safety standards evolve quickly. While the Village of Oak Brook currently follows the 2020 edition of the National Electrical Code, the industry has moved toward a mandatory GFCI (Ground-Fault Circuit Interrupter) breaker requirement for all garage outlets in 2026. This specialized breaker detects tiny leaks in the electrical current. If moisture from a snowy car or a damp garage floor creates a path to ground, the GFCI trips instantly to prevent a lethal shock. Your old 240V dryer outlet likely lacks this protection, making it unsuitable and illegal for a modern NEMA 14-50 outlet installation for EV Oak Brook. We ensure your setup meets the highest current safety benchmarks for total peace of mind.
Preparing Your Oak Brook Home for EV Power
Your home's electrical system is the foundation of a successful NEMA 14-50 outlet installation for EV Oak Brook. Many of the beautiful, established homes in our community were built with 100-amp electrical service, which was plenty for the appliances of the past. Today, adding a 50-amp circuit for an electric vehicle can consume half of that total capacity in one go. We start every project by assessing whether your current panel has the "headroom" to support this new demand. If you have a 200-amp panel, you're likely in a great position for a straightforward install. For those with 100-amp service, we have an honest conversation about whether a panel upgrade is necessary to prevent frequent breaker trips or potential safety hazards.
The physical layout of your home also plays a significant role in the project scope. The closer your electrical panel is to your desired charging location in the garage, the more cost-effective the installation becomes. Longer distances require more heavy-duty 6 AWG copper wire and additional conduit runs, which increases material costs. We work with you to find a mounting location that balances convenience for your vehicle's charging port with the most efficient path for the new wiring. This proactive planning ensures you get a high-caliber result without unnecessary expenses.
Oak Brook Permitting and Inspections
Safety in our community is a collective effort. The Village of Oak Brook requires a specific electrical permit for any Level 2 charging installation because it involves significant new wiring and panel work. Skipping this step is a major risk. Unpermitted electrical work can lead to the denial of insurance claims if a fire ever occurs, even if the fire was unrelated to the charger. Our team handles all the building department paperwork and coordination for you. We ensure the local inspector sees a clean, code-compliant setup during the final walkthrough. If you want to learn more about how we manage these requirements across the region, check out our insights on electrical permit services IL.
Load Management Solutions
You don't always need a massive service upgrade just because your main panel is full. We often utilize sub-panels or smart load management systems that allow your home to prioritize power where it's needed most. These modern solutions can save you thousands of dollars while still providing the 240V charging speeds you need. Before we add any new high-voltage circuits, we highly recommend a professional breaker box maintenance check. This allows us to identify any loose connections or aging components that might struggle under the new load of a NEMA 14-50 outlet installation for EV Oak Brook. Our goal is to provide you with a stable, long-term charging solution that gives you total peace of mind. Contact our licensed team today to schedule your home capacity assessment.
Trust Electrical Repair 4U for Your Oak Brook EV Setup
Choosing the right partner for your home’s electrical infrastructure is a decision rooted in trust and security. For over 40 years, our team has served as a stable pillar for homeowners across DuPage and Cook County. We’ve watched technology shift from basic household circuits to the sophisticated high-voltage requirements of modern electric vehicles. When you schedule a NEMA 14-50 outlet installation for EV Oak Brook with us, you aren’t just hiring a contractor. You’re collaborating with seasoned veterans who understand the high stakes of continuous electrical loads. Our long-standing tenure in the field is your guarantee of high-caliber results and proven reliability.
We take immense pride in our craft and our commitment to the community. We are a dedicated team of licensed professionals who view every installation as a long-term commitment to your safety. While others might settle for standard parts, we insist on industrial-grade components that can withstand the thermal stress of Level 2 charging. This proactive attitude prevents technical failures before they start. We handle the complex technical work so you can enjoy the simple convenience of a fully charged vehicle. Your peace of mind is our signature result.
Why a Local Specialist Matters
Oak Brook homes have unique architectural and electrical quirks that require a nuanced approach. We know these neighborhoods intimately. We understand which homes might need a panel refresh and which are ready for an immediate upgrade. Our proximity allows us to offer prompt troubleshooting if your charging ever fluctuates. You’ll never deal with a faceless corporation or high-pressure sales tactics. We provide honest assessments and transparent pricing that reflects our neighborly values. We believe in personal empowerment through reliable service.
Start Your EV Journey Today
Transitioning to an electric vehicle should be an exciting milestone, not a source of electrical anxiety. We’re here to remove the stress of the unknown. Our process begins with a thorough garage power assessment to ensure your NEMA 14-50 outlet installation for EV Oak Brook is a success. For additional home safety tips beyond your garage, feel free to explore our residential electrical repair Warrenville guide. We are ready to help you take the next step in modernizing your home infrastructure. Schedule your NEMA 14-50 installation with Electrical Repair 4U today and experience the confidence that comes with professional expertise.
Power Your Future with Confidence
Upgrading your garage with a Level 2 charging solution is a significant step toward a more efficient and sustainable lifestyle. You now understand how the NEMA 14-50 outlet provides the versatility needed for any EV brand while delivering the overnight speeds your busy schedule demands. By prioritizing industrial-grade components and precise load calculations, you protect your home from the risks of thermal stress and electrical failure. A professional NEMA 14-50 outlet installation for EV Oak Brook ensures your setup meets the strict standards of the National Electrical Code while maximizing your potential for available ComEd rebates.
Our team brings over 40 years of local experience to every project we handle in our community. As specialized EV infrastructure experts and licensed and insured Illinois electricians, we serve as your collaborative partners in modernizing your home. We remove the anxiety of technical upgrades and replace it with the security of a job done right. Get a Professional NEMA 14-50 Installation Quote today to start your journey toward effortless home charging. We look forward to helping you power your new electric vehicle with total peace of mind.
Frequently Asked Questions
How much faster is a NEMA 14-50 outlet compared to a standard wall plug?
A NEMA 14-50 outlet is approximately eight to ten times faster than a standard 120V household plug. While a basic outlet adds only about 3 miles of range per hour, this high-voltage setup delivers 25 to 35 miles of range in the same timeframe. This allows you to fully recharge most vehicles overnight rather than waiting several days for a full battery.
Do I need to upgrade my electrical panel to 200 amps for an EV outlet in Oak Brook?
Not necessarily, but it depends on your current electrical load. Many older Oak Brook homes operate on 100-amp service that might already be near its limit with air conditioners and electric dryers. We perform a detailed load calculation to see if your existing panel can safely support the new circuit. If your panel is at capacity, we'll discuss honest options for a stable upgrade.
Can I use my existing dryer outlet to charge my electric car?
Using a standard dryer outlet for EV charging is generally not recommended and often unsafe. Dryer outlets are typically rated for 30 amps, while most EV mobile connectors are designed for the 50-amp NEMA 14-50 standard. Attempting to use adapters on a lower-rated circuit can lead to overheating, tripped breakers, or even electrical fires in your garage.
Is a NEMA 14-50 outlet safe to install in an outdoor driveway or carport?
Yes, we can safely install these outlets outdoors when using a weather-rated, lockable enclosure. To meet 2026 safety standards, these outdoor installations must include a GFCI breaker to protect against shocks in damp conditions. This setup ensures your vehicle stays charged and your family stays safe, regardless of the Illinois weather.
What is the difference between a cheap outlet and an industrial-grade NEMA 14-50?
Cheap outlets found at big-box stores are designed for appliances that turn on and off, like a kitchen range. EV charging is a continuous load that pulls high power for many hours straight. Industrial-grade outlets feature heavier copper components and stronger clamping force to handle this intense heat. We only use these high-caliber parts to prevent the arcing and melting common with inferior hardware.
Does Oak Brook require a permit for installing a 240V EV outlet?
Yes, the Village of Oak Brook requires a permit for any new 240V circuit installation to ensure it meets the 2020 National Electrical Code. This process includes an official inspection that protects your property value and keeps your homeowners insurance valid. Our team handles the entire permit process for your NEMA 14-50 outlet installation for EV Oak Brook so you don't have to worry about the paperwork.
What happens if my NEMA 14-50 outlet gets warm during charging?
It is normal for the outlet and charging cable to feel warm to the touch during a long charging session. However, the hardware should never feel hot, smell like burning plastic, or show signs of discoloration. If you notice any of these red flags, stop charging immediately. These are signs of a loose connection or a failing receptacle that needs urgent professional attention.
Can I charge a Tesla with a NEMA 14-50 outlet without a Wall Connector?
You can absolutely charge a Tesla without the extra expense of a dedicated Wall Connector. By using the Tesla Mobile Connector with a 14-50 adapter, you achieve Level 2 charging speeds that are perfect for daily use. This versatile setup is a favorite for many of our clients because it provides fast charging while remaining portable if you ever move or travel.
