How to Install a Tesla Wall Connector in Illinois: A 2026 Homeowner’s Guide

With over 160,000 electric vehicles already on Illinois roads, and 90% of those concentrated in the ComEd service territory, the demand for reliable home charging has never been higher. If you are planning to install Tesla wall connector Illinois equipment this year, you are making a 25-year investment in your home's infrastructure. It's a smart move that adds value and convenience to your daily routine.

We know that the technical details can feel a bit daunting. You might be staring at your breaker box wondering if it can handle a 60A circuit or worrying about the specific permit costs in your municipality. It's natural to want a clean, professional garage setup without the headache of managing complex building codes alone. This guide simplifies the entire process for you. We'll walk through the step-by-step installation requirements and show you how to claim the 30% federal tax credit and local rebates available through June 2026. From understanding the latest Gen 3 firmware to ensuring your home is ready for 44 miles of range per hour, you're about to become an expert on Illinois EV charging.

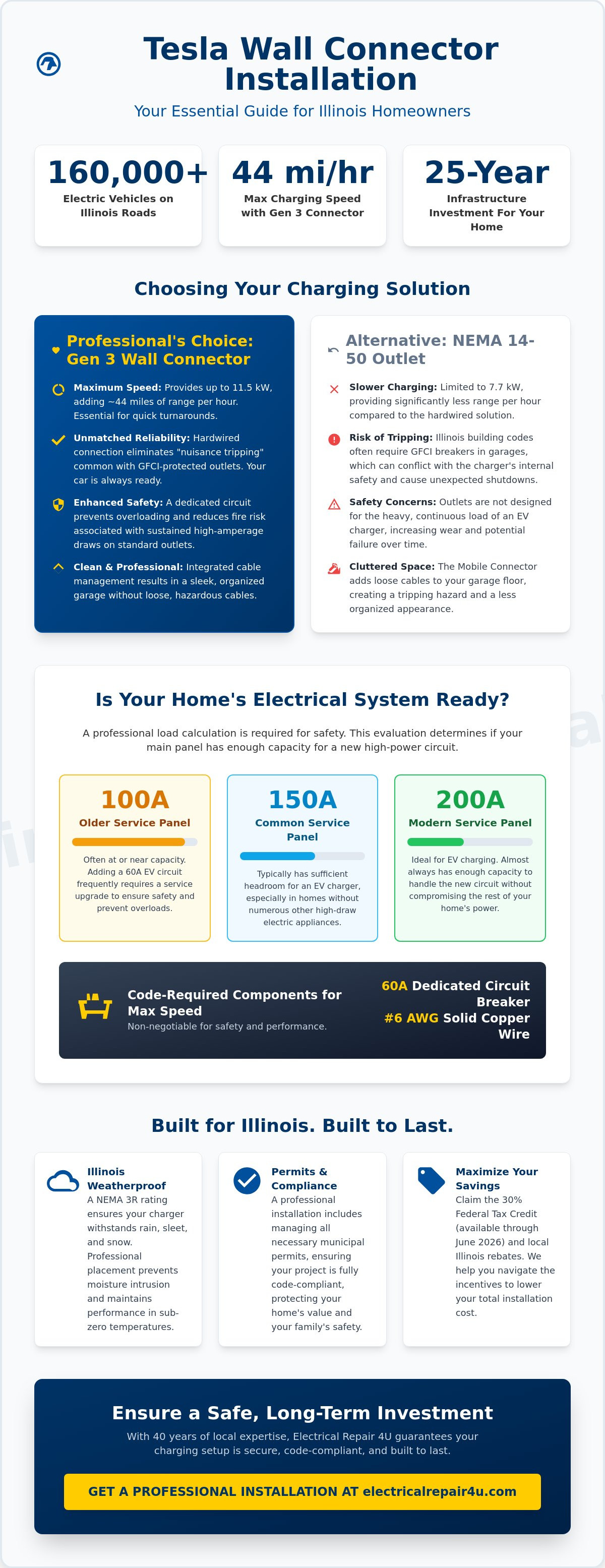

Why the Tesla Wall Connector is the Standard for Illinois Charging

Choosing the right equipment is the first step toward a seamless charging experience. While the Mobile Connector is a handy backup, the Gen 3 Wall Connector is the gold standard for daily use. It delivers up to 11.5 kW of power, providing up to 44 miles of range for every hour it's plugged in. This speed is essential for families who need their vehicles ready at a moment's notice. When you choose to install Tesla wall connector Illinois equipment, you are securing a permanent piece of infrastructure that uses the North American Charging Standard (NACS). This ensures your home is ready for the future of electric mobility while providing the fastest possible recovery of range after long commutes on I-88 or I-90.

A hardwired connection offers a level of reliability that plug-in chargers simply can't match. This is especially true in our local climate. In Naperville and Aurora, homeowners see this as a high-value upgrade that lasts for decades. It's not just a gadget; it's a 25-year investment in your property's utility. A clean, professional installation removes the clutter of loose cables. It provides a dedicated, high-speed power source that won't let you down when the temperature drops. We've seen how a professional setup changes the way people interact with their EVs. It turns a chore into a background task that just works.

Wall Connector vs. NEMA 14-50 Outlets

Hardwiring is the safer route for high-amperage continuous loads. Many homeowners consider using a NEMA 14-50 outlet, but these plug-in solutions often face "nuisance tripping." Local Illinois building codes frequently require GFCI breakers for garage outlets. These breakers can conflict with the internal safety checks of a Tesla charger, causing it to shut off unexpectedly. By hardwiring the unit, we bypass this issue entirely. You get a sleek, organized garage with better cable management and a more stable electrical connection. It's about peace of mind. You won't wake up to an uncharged car because of a sensitive breaker.

Weatherproofing Your Installation

Our winters are famously tough on outdoor equipment. If you plan to install Tesla wall connector Illinois hardware in an outdoor driveway in Elgin, the NEMA 3R rating is your best defense. This rating means the unit is built to withstand rain, sleet, and heavy snow. We pay close attention to cable flexibility during sub-zero stretches. Proper placement is key to avoiding snow buildup and moisture intrusion around the wirebox. We've seen how the right positioning prevents long-term corrosion and keeps your charging speeds consistent all year long. We're here to help you get it right the first time.

Evaluating Your Home’s Electrical Capacity for Tesla Charging

Before you decide to install Tesla wall connector Illinois equipment, you must look at your home’s electrical foundation. Most Illinois homes have either 100A, 150A, or 200A service. If you have an older 100A panel, adding a 60A circuit for a charger might overload the system. We start every project with a detailed load calculation. This isn't just a suggestion; it is a safety requirement. We look at your existing appliances, from your AC unit to your electric dryer, to see if there is enough "headroom" for the new load. Understanding your limit protects your home from unexpected outages and keeps your charging speeds consistent.

Older breaker boxes often hide aging components. Corrosion or loose connections can turn a high-demand EV charger into a fire risk. If your panel is decades old, it may not be equipped to handle the sustained high amperage that Tesla charging requires. Our team prioritizes your security by identifying these red flags before the first wire is pulled. You can explore our guide on breaker box maintenance to understand what keeps your system stable. A healthy panel is the backbone of a reliable charging setup.

Circuit Breaker and Wire Gauge Requirements

The choice of wire is critical for long-term safety. For a full 48A charging speed, you need a 60A breaker and #6 AWG copper wire. Some installers might try to use thinner wire or aluminum to save money, but we never compromise on safety. A 40A or 50A breaker is an option if your panel is tight on space, but it will result in slower daily charging. We help you balance your speed needs with what your home can safely provide. This balance is often influenced by current Illinois EV charging incentives that may help offset the cost of necessary upgrades. Using the right materials ensures your charger operates at peak efficiency without overheating your wiring.

When to Consider a Service Upgrade

If you live in a DuPage County home with an original 100A service, a 200A panel upgrade is often the best path forward. This gives you the capacity for your Tesla today and other electrical needs tomorrow. When we install Tesla wall connector Illinois units in older neighborhoods, we often find that a service upgrade is the most responsible choice for the homeowner. We also recommend pairing your installation with whole house surge protector installation. This protects your vehicle's sensitive battery from the power surges that often hit our local grid during summer storms. If you're unsure about your current capacity, a quick panel evaluation can provide the clarity you need to move forward with confidence.

Step-by-Step: The Tesla Wall Connector Installation Process

When you decide to install Tesla wall connector Illinois equipment, the physical work begins with a clear plan for your conduit. This is where professional experience pays off. We look for the most efficient path from your breaker box to the garage or driveway. While a standard manual might make this look like a simple four-step task, the reality of Illinois architecture often adds layers of complexity. We focus on getting the job done right so you can focus on the road ahead.

Physical Installation and Conduit Routing

Choosing the right materials is essential for a long-lasting setup. We often decide between EMT conduit, which provides rigid protection in a busy garage, and flexible liquid-tight piping for tricky corners. In modern Bolingbrook home builds, we frequently navigate fire-stops and joists hidden behind finished drywall. It's about more than just aesthetics; it's about maintaining the structural integrity of your home. We also ensure the mounting height follows local accessibility guidelines, typically placing the unit between 18 and 48 inches from the ground. This makes daily plugging and unplugging effortless for everyone in the family.

Once the conduit is secure, we mount the wirebox. This serves as the landing for the main unit and requires a perfectly level surface. We pay close attention to the terminal blocks during the wiring phase. Using a torque screwdriver to hit the exact manufacturer settings is a critical step that many DIYers overlook. If these connections are too loose, they can overheat under the heavy 48A load. We take the time to double-check every screw. This meticulous approach removes the anxiety of potential technical failures and ensures your charger runs cool during those long overnight sessions.

Software Configuration and Load Sharing

The final phase involves bringing the unit to life through the Tesla Pros app. We connect the Wall Connector to your home Wi-Fi, which allows the unit to receive automatic firmware updates. This keeps your charger compatible with the latest vehicle software without you lifting a finger. During this commissioning process, we set the maximum current output to match your specific breaker. This step is vital for safety. It prevents the charger from pulling more power than your home's infrastructure can handle.

We also look toward your future needs. If you think you might add a second EV later, we can configure power-sharing right now. This smart feature allows two chargers to communicate and split the available electricity safely. Before we wrap up, we always suggest you review the latest Illinois EV charging incentives and regulations. Staying informed about these rules helps you maximize your investment while staying fully compliant with state laws. Once the software is synced and the lights turn green, you're ready to enjoy the fastest home charging available.

Navigating Illinois Permits and EV Charging Incentives

When you prepare to install Tesla wall connector Illinois equipment, the paperwork might seem like a hurdle. It is actually your best protection. An electrical permit is non-negotiable for homeowners who value their insurance coverage and future property resale value. In Illinois, an unpermitted installation can lead to denied claims or complications during a home inspection. We've spent 40 years helping neighbors navigate these local requirements so you don't have to. We believe in doing things the right way to ensure your home remains a safe haven for your family.

Local Permitting in DuPage and Kane Counties

Permit turnaround times vary significantly across the suburbs. In towns like Naperville and Elmhurst, you can typically expect a response within one to two weeks. During the inspection, a local official will verify your grounding, wire gauge, and terminal torque settings. They want to see that the work meets the highest safety standards. We manage this entire process for you, including the electrical permit services required for a successful sign-off. This removes the stress of city hall visits and keeps your project on schedule.

Financial incentives make 2026 an ideal year for this upgrade. The Federal 30C Alternative Fuel Infrastructure Tax Credit allows you to claim 30% of your installation costs, up to $1,000 for residential sites, through June 30, 2026. Locally, the Illinois Environmental Protection Agency (IEPA) offers a rebate for all-electric vehicles. The current application window is open until May 31, 2026. Eligible residents can receive a $2,000 rebate, while low-income individuals may qualify for $4,000. These programs effectively lower the barrier to high-speed home charging.

Utility-Specific Programs

Your choice of utility provider opens even more doors for savings. ComEd has dedicated approximately $70 million in funding for EV programs in 2026. This includes "Hourly Pricing" and "Time-of-Day" programs that allow you to charge your Tesla at significantly lower rates during off-peak night hours. Residents in Ameren Illinois territory also have access to specific incentives designed to support the growing EV infrastructure outside the Chicago metro area. Switching to an EV-specific rate plan offers a massive long-term ROI, often paying for the installation itself through fuel savings over just a few years.

Maximizing these benefits requires a partner who understands the fine print of both state laws and utility fine print. We take pride in being more than just contractors; we are your collaborative partners in this transition. If you are ready to secure your home's future, you can schedule your expert EV charger installation with our team today. We'll ensure you capture every available rebate while providing a setup that stands the test of time.

The Electrical Repair 4U Difference for Tesla Owners

Our 40-year history in the electrical trade is more than just a number. It is a promise of stability and proven results. When you decide to install Tesla wall connector Illinois hardware, you deserve a partner who understands the local landscape. We have spent decades keeping Illinois homes safe and powered, evolving alongside the technology that drives our community forward. We don't view ourselves as just another contractor. We are your neighbors, committed to ensuring your transition to electric driving is as smooth as possible.

Many out-of-state aggregator websites try to capture local business by farming out work to the lowest bidder. This often leads to inconsistent quality and a lack of accountability. We take the opposite approach. Our team consists of seasoned, licensed professionals who take immense pride in their craft. We offer transparent pricing and white-glove service from the moment you call until the first time you plug in your vehicle. This neighborly reliability means we are here for you today, and we will still be here ten years from now when you need a system check or an upgrade.

We provide ongoing support that goes beyond the initial installation. Our commitment to your home's infrastructure includes everything from breaker box maintenance to whole-house safety evaluations. We want to ensure that your new high-speed charger integrates perfectly with your existing electrical system. By choosing a local expert, you remove the anxiety often associated with complex technical upgrades. You get a collaborative partner who prioritizes your security and peace of mind over a quick sale.

Expertise You Can Trust

Our team undergoes specialized training focused specifically on Tesla charging infrastructure. We treat your garage like our own. This means we prioritize clean, precise work that looks as good as it functions. We use only high-grade materials that meet or exceed National Electrical Code (NEC) standards. Whether it is selecting the most durable conduit or ensuring every terminal is torqued to exact specifications, we never cut corners. Our diligent, safety-conscious attitude is why so many Illinois families trust us with their most valuable investments.

Ready for Your Tesla Upgrade?

Scheduling your site assessment in Warrenville or the surrounding suburbs is straightforward and efficient. To get the most out of your consultation, we suggest having photos of your current electrical panel and your vehicle's VIN ready. This helps us provide a more accurate load calculation and installation plan right from the start. We are ready to help you master the process of bringing high-speed charging to your home. Take the first step toward a faster, cleaner daily routine. Contact us today for your professional Tesla install and experience the difference that 40 years of local expertise makes.

Ready to Power Your Future?

Bringing high-speed charging to your driveway is more than just a convenience; it's a significant upgrade to your home's infrastructure. By now, you understand the importance of a precise load calculation and the value of capturing those 2026 Illinois rebates before they expire. You've seen how a hardwired Gen 3 unit provides the reliability needed for our local climate. Now it's time to turn that knowledge into action and ensure your setup is handled with the technical expertise it deserves.

When you're ready to install Tesla wall connector Illinois equipment, don't leave the safety of your home to chance. Our team brings 40+ years of local Illinois experience and the skill of licensed and insured master electricians to every project. We take pride in our A+ rated customer service in DuPage County and treat every garage like our own. We'll handle the permits, the wiring, and the final commissioning so you can enjoy the peace of mind that comes with a job done right. Get a Professional Tesla Wall Connector Installation Quote today and start every morning with a full charge and total confidence.

Frequently Asked Questions

Do I need to upgrade my electrical panel to install a Tesla Wall Connector?

An electrical panel upgrade depends entirely on your home's current load capacity and existing appliances. While a 100A service might support a lower-amperage setting, a 200A panel is the standard for homeowners who want the full 48A charging speed. We perform a detailed load calculation to determine if your system has the necessary headroom. This ensures you don't face unexpected power failures when your charger and air conditioner run simultaneously.

How much does it cost to install a Tesla Wall Connector in Illinois?

The total investment for your installation depends on several factors specific to your home's layout. The distance between your breaker box and the charger location is a primary factor. Additionally, if your project requires a service upgrade or complex conduit routing through finished walls, the labor and materials will reflect that. We provide transparent, itemized quotes that cover everything from local permits to the final safety inspection for your peace of mind.

Can I install the Tesla Wall Connector myself?

It is highly recommended to hire a licensed professional to install Tesla wall connector Illinois hardware. This project involves high-voltage electrical work that poses significant safety risks if handled incorrectly. Most Illinois municipalities also require a permit and a subsequent inspection to ensure the work meets local building codes. Hiring an expert protects your home's insurance coverage and ensures the equipment operates at its peak efficiency for years to come.

What is the difference between a 48A and 60A circuit for Tesla charging?

A 60A circuit breaker is required to achieve the maximum 48A charging output of the Wall Connector. Under the National Electrical Code, a circuit must be rated for 125% of the continuous load it carries. If you use a 50A breaker, your charging speed is capped at 40A. Choosing the 60A configuration allows you to recover range much faster. This is a major benefit for busy families who need their vehicle ready at a moment's notice.

How long does the installation take from start to finish?

The physical installation typically takes between four and six hours for a standard residential setup. This includes mounting the unit, running the conduit, and testing the software configuration through the app. However, the total timeline from your first call to the final sign-off involves the permit approval process. We handle the paperwork with your local building department to keep things moving as quickly as possible. We value your time and aim for a seamless experience.

Are there any Illinois state rebates currently available for home chargers?

Illinois residents can take advantage of the Illinois EPA rebate program for all-electric vehicles, which remains active through May 2026. While many state incentives focus on the vehicle itself, utility providers like ComEd offer programs designed to support the growing EV infrastructure. These programs are designed to lower the cost of preparing your site for high-speed charging. We help you identify every available credit to maximize your return on investment and lower your total costs.

Does the Tesla Wall Connector work with non-Tesla electric vehicles?

Yes, the Tesla Universal Wall Connector is designed to work with all electric vehicles sold in North America. It features an integrated adapter that makes it compatible with non-Tesla models without needing extra parts. If you have the standard model, you can still charge other EVs using a separate adapter. This versatility makes the unit a smart long-term investment. It ensures your home is ready for any electric vehicle you might own in the future.

What happens if my Wall Connector stops working in the middle of winter?

The Gen 3 Wall Connector is built with a NEMA 3R rating to withstand harsh Illinois winters. If your unit stops working during a cold snap, it is often due to a tripped breaker or a software connectivity issue. We provide expert electrical repair services to diagnose and resolve these failures quickly. Our goal is to remove the anxiety of being stranded by offering reliable, neighborly support when you need it most. We stay available to keep you powered up.
